EOT crane

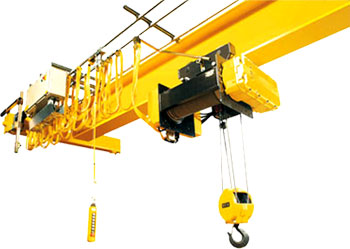

What is EOT CRANE?
Electric overhead traveling crane (EOT crane) is one of the most common types of overhead cranes, or called bridge cranes, which consist of parallel runways with a traveling bridge spanning the gap. As obvious from the name, EOT crane is operate by electric, generally there is an operator cabin or a control pendant along with the EOT crane.
Products Summary:
European series overhead crone with hook is a new generation crone, it has the fallowing advantages:
- Light dead weight, light wheel load, small boundary dimensions, dependable performance, easy operation.
- Light wheel load and small boundary dimensions can reduce the costs of plant construction, save capital investment of lighting, heating and so on.
- Using high-quality components can reduce failure rate and maintenance costs. Lowing consumption of total power con reduce the costs, it has remarkable energy- saving effect.

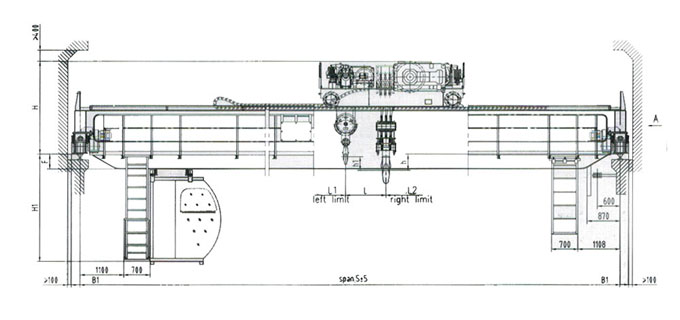

EOT crane with hook cap.75-100t
| Cap | Main | t | 75 | 100 | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Aux. | 20 | 20 | |||||||||||||
| Span | m | 13.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | 16.5 | 19.5 | 22.5 | 25.5 | 28.5 | 31.5 | |
| Lifting Height | 24 | 24 | |||||||||||||
| 26 | 26 | ||||||||||||||
| Duty | A5 | A5 | |||||||||||||
| Speed | Main | m/min | 0.37~3.7 | 0.32~3.2 | |||||||||||
| Aux. | 0.57~5.7 | 0.57~5.7 | |||||||||||||
| Crab travelling | 2.92~29.2 | 2.9~29 | |||||||||||||
| Trolley travelling | 4.8~48 | 5.26~52.6 | |||||||||||||
| Limit dimensions | L1 | mm | 705 | 775 | |||||||||||
| L2 | 2075 | 2265 | |||||||||||||
| L | 1070 | 1100 | |||||||||||||
| H | 528 | 428 | 424 | 354 | 250 | ||||||||||
| H1 | 362 | 362 | |||||||||||||
| Main dimensions | H0 | mm | 400 | 500 | |||||||||||
| H | 2335 | 2435 | 2440 | 2970 | 3075 | ||||||||||
| H2 | 2390 | 2540 | 2740 | 2890 | 3040 | 2550 | 2650 | 2555 | 2705 | 2905 | 3105 | ||||
| B | 7700 | 7710 | |||||||||||||
| K | 3600 | 3600 | |||||||||||||
| B1 | 227 | 252 | |||||||||||||
| F | 24 | 174 | 374 | 524 | 674 | 186 | 286 | 190 | 340 | 540 | 740 | ||||
| Max.Wheel Load | kn | 263 | 271 | 279 | 288 | 295 | 305 | 313 | 315 | 325 | 340 | 350 | 361 | 371 | |
| Total Power | kw | 104.5 | 118 | 126 | |||||||||||
| Crane rail recommended | QU100 | QU100 | |||||||||||||
| Power Supply | 3-Phase A.C.50Hz 380v | 3-Phase A.C.50Hz 380v | |||||||||||||
Single girder EOT crane and Double girder EOT crane
As the name shown, single girder EOT crane has one main girder, which is easy to install and requires less maintenance. Our single girder EOT crane is manufactured by the best raw materials, and every crane designed by our expert team of engineers can keep the lifting speed, trolley speed and maximum lifting load. We can offer the most suitable single girder EOT crane as per the customers' requirements. The most common single girder EOT cranes are as follows: LD type single girder EOT crane, LDP type single girder EOT crane, HD type single girder EOT crane.
Compared with single girder EOT crane, double girder EOT crane consists of two girders which can meet the requirements of heavy loads and wide spans. It is available with load capacities up to 100t and with spans up to 50m. Adopts the FEM advanced design and manufacture standards of European. The technological level reaches to the leading level of not only international but also domestic. The design of steel structure is reasonable, and conforms to the standards and specifications to meet the demands of strength, rigidity and stability. Our main double girder EOT crane includes: QD type hook double bridge crane, LH electric hoist double girder bridge crane, NLH type double girder EOT crane.
Applications of EOT crane
EOT crane is extensively used in the warehouse, workshop, and stock ground of industrial and mining enterprises for loading, unloading or relocating heavy load. Generally speaking, the EOT crane is equipped with the mechanical means to realize the traveling not only in both directions but also can raise or lower the heavy load easily. But should pay attention to that EOT crane is forbidden to used in the explosive, combustible or corrosive environment, and the working temperature is approximately from -20℃ to 40℃.
